Shopify

Shopify is an eCommerce platform that provides tools to help online sellers run their businesses.

Fullstory can easily be set up on most Shopify themes by following the steps below. Once installed, you can use Fullstory to play back user sessions (*when available), build conversion funnels, and gain new insights into how your customers navigate your store.

In addition to adding the Fullstory snippet to your theme as described below, you can also send Shopify-provided analytics events to Fullstory. Fullstory provides shop administrators:

• A recommended Order Status page script that reliably sends a data-rich “Order Completed” event.
• A custom web pixel that captures newly available analytics events.  A shop admin can configure the custom web pixel. It works out-of-the-box with no custom development required.



Configuration Steps

1. Installation

2. Adding your data capture snippet to your Order Status page

3. Adding the Fullstory Checkout Extensibility pixel to Shopify

4. Check 'Capture data by domain' settings

5. Configure a Revenue Event (*Optional)

6. Update Page Definitions (*Optional)

Additional Information

Events captured by Fullstory after creating a pixel

Looking for Shopify Events in Fullstory

Known issues with the Fullstory Checkout Extensibility pixel

Timeline of changes made by Shopify

FAQs

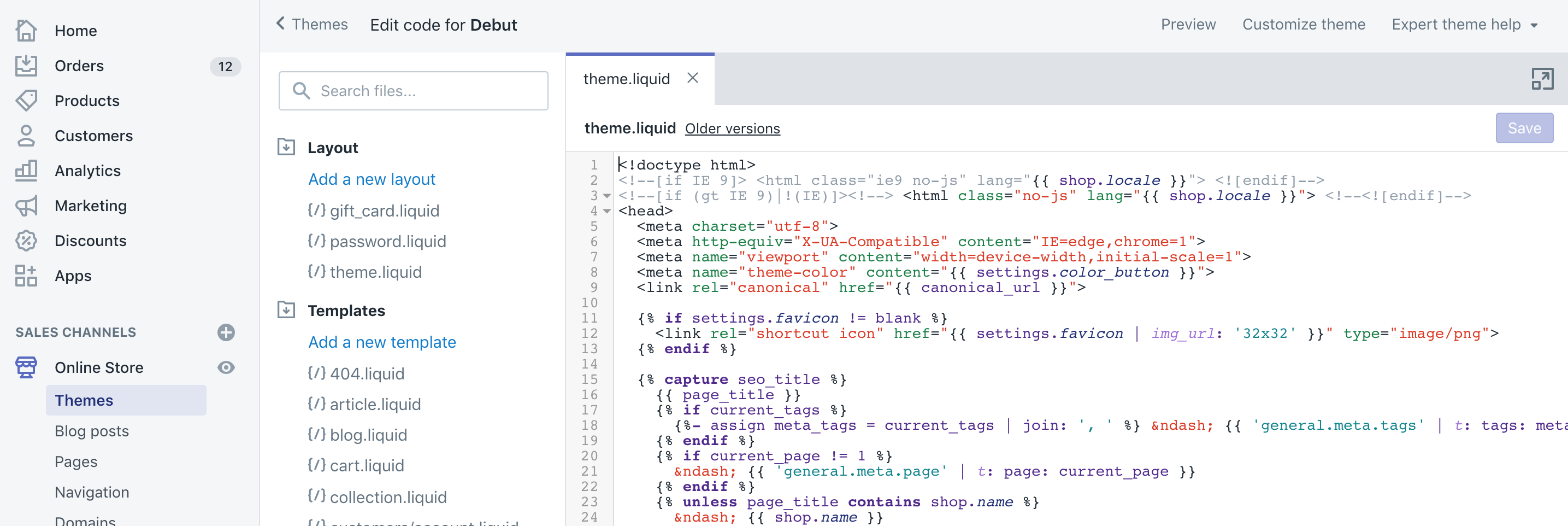

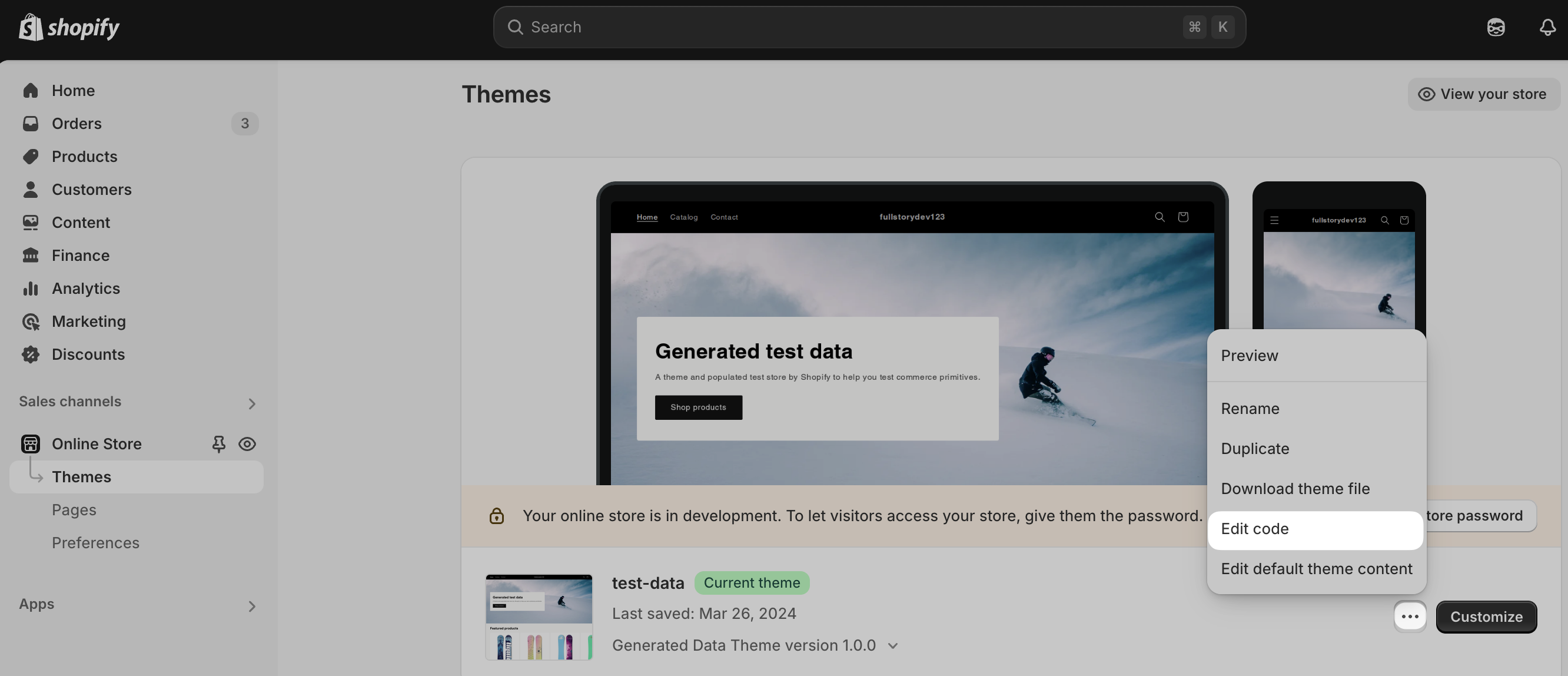

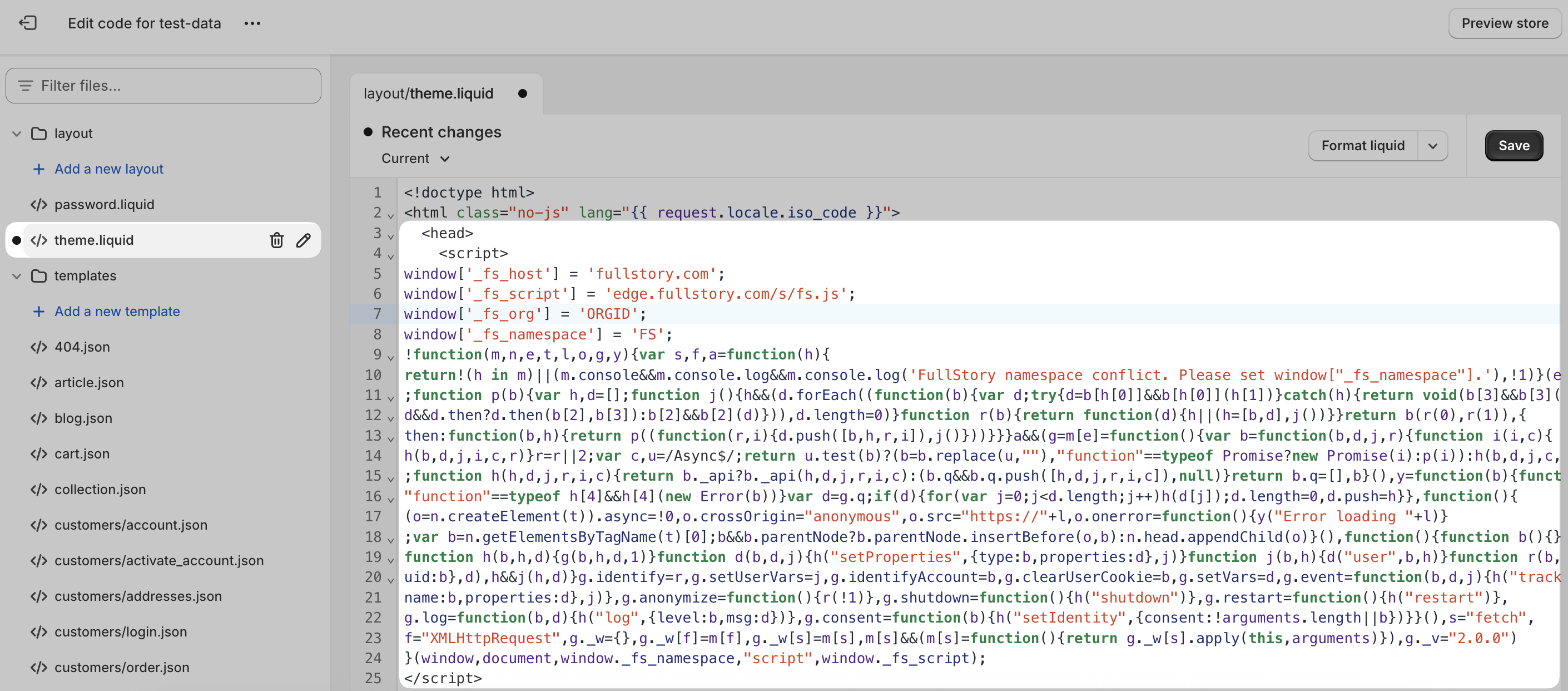

Step 1 - Installation

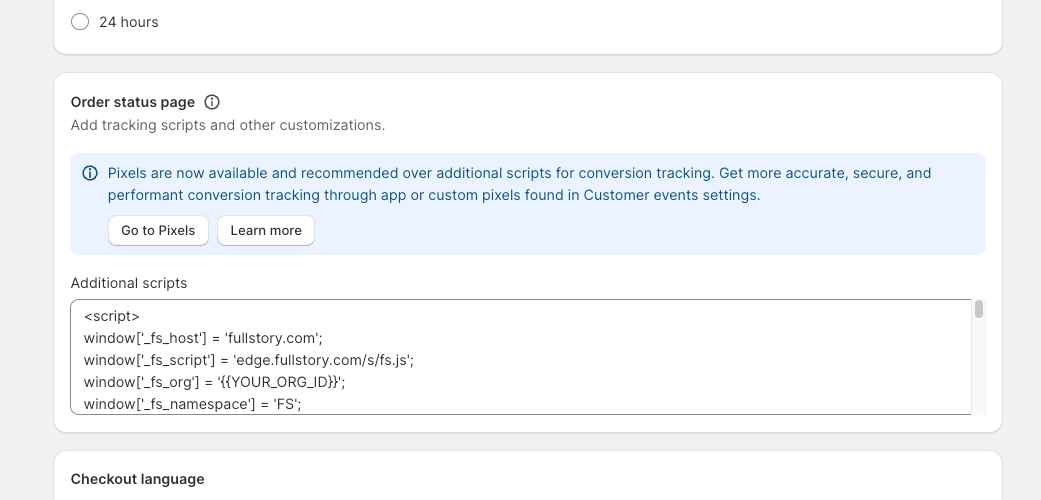

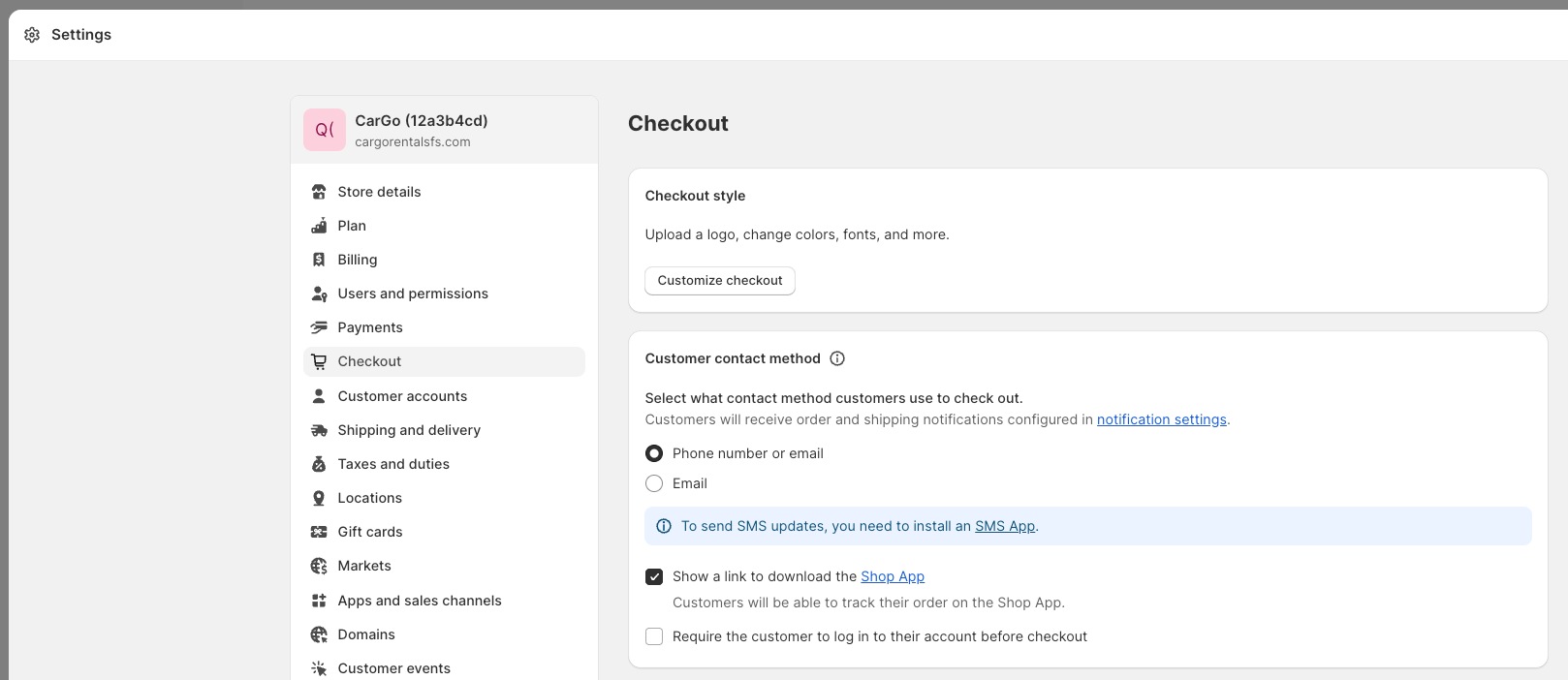

Step 2 - Adding your data capture snippet to your Order Status page

Updating the Additional Scripts allows Fullstory to resume session capture on the Thank You / Order Status pages but not all Shopify accounts will have access to modify this section.

<script>
 window['_fs_host'] = 'fullstory.com';
 window['_fs_script'] = 'edge.fullstory.com/s/fs.js';
 window['_fs_org'] = '<org id>';
 window['_fs_namespace'] = 'FS';
 !function(m,n,e,t,l,o,g,y){var s,f,a=function(h){
 return!(h in m)||(m.console&&m.console.log&&m.console.log('FullStory namespace conflict. Please set window["_fs_namespace"].'),!1)}(e)
 ;function p(b){var h,d=[];function j(){h&&(d.forEach((function(b){var d;try{d=b[h[0]]&&b[h[0]](h[1])}catch(h){return void(b[3]&&b[3](h))}
 d&&d.then?d.then(b[2],b[3]):b[2]&&b[2](d)})),d.length=0)}function r(b){return function(d){h||(h=[b,d],j())}}return b(r(0),r(1)),{
 then:function(b,h){return p((function(r,i){d.push([b,h,r,i]),j()}))}}}a&&(g=m[e]=function(){var b=function(b,d,j,r){function i(i,c){
 h(b,d,j,i,c,r)}r=r||2;var c,u=/Async$/;return u.test(b)?(b=b.replace(u,""),"function"==typeof Promise?new Promise(i):p(i)):h(b,d,j,c,c,r)}
 ;function h(h,d,j,r,i,c){return b._api?b._api(h,d,j,r,i,c):(b.q&&b.q.push([h,d,j,r,i,c]),null)}return b.q=[],b}(),y=function(b){function h(h){
 "function"==typeof h[4]&&h[4](new Error(b))}var d=g.q;if(d){for(var j=0;j<d.length;j++)h(d[j]);d.length=0,d.push=h}},function(){
 (o=n.createElement(t)).async=!0,o.crossOrigin="anonymous",o.src="https://"+l,o.onerror=function(){y("Error loading "+l)}
 ;var b=n.getElementsByTagName(t)[0];b&&b.parentNode?b.parentNode.insertBefore(o,b):n.head.appendChild(o)}(),function(){function b(){}
 function h(b,h,d){g(b,h,d,1)}function d(b,d,j){h("setProperties",{type:b,properties:d},j)}function j(b,h){d("user",b,h)}function r(b,h,d){j({
 uid:b},d),h&&j(h,d)}g.identify=r,g.setUserVars=j,g.identifyAccount=b,g.clearUserCookie=b,g.setVars=d,g.event=function(b,d,j){h("trackEvent",{
 name:b,properties:d},j)},g.anonymize=function(){r(!1)},g.shutdown=function(){h("shutdown")},g.restart=function(){h("restart")},
 g.log=function(b,d){h("log",{level:b,msg:d})},g.consent=function(b){h("setIdentity",{consent:!arguments.length||b})}}(),s="fetch",
 f="XMLHttpRequest",g._w={},g._w[f]=m[f],g._w[s]=m[s],m[s]&&(m[s]=function(){return g._w[s].apply(this,arguments)}),g._v="2.0.0")
 }(window,document,window._fs_namespace,"script",window._fs_script);
</script>
{% if first_time_accessed %}
<script>
 (function () {
   window[window['_fs_namespace']]('observe', {
     type: 'start',
     callback: () => {
       window[window['_fs_namespace']]('trackEvent', {
         name: 'Order Completed',
         properties: {
           cancel_reason: '{{ order.cancel_reason }}',
           cancelled: !!'{{ order.cancelled }}',
           confirmation_number: '{{ order.confirmation_number }}',
           financial_status: '{{ order.financial_status }}',
           fulfillment_status: '{{ order.fulfillment_status }}',
           id: '{{ order.id }}',
           item_count: +'{{ order.item_count }}',
           line_items_subtotal_price: +'{{ order.line_items_subtotal_price | money_without_currency }}',
           name: '{{ order.name }}',
           note: '{{ order.note }}',
           order_number: '{{ order.order_number }}',
           shipping_price: +'{{ order.shipping_price | money_without_currency }}',
           subtotal_price: +'{{ order.subtotal_price | money_without_currency }}',
           tax_price: +'{{ order.tax_price | money_without_currency }}',
           total_discounts: +'{{ order.total_discounts | money_without_currency }}',
           total_duties: +'{{ order.total_duties | money_without_currency }}',
           total_net_amount: +'{{ order.total_net_amount | money_without_currency }}',
           total_price: +'{{ order.total_price | money_without_currency }}',
           total_refunded_amount: +'{{ order.total_refunded_amount | money_without_currency }}',
         }
       });
     }
   })
 }());
</script>
{% endif %}

Step 3 - Adding the Fullstory Checkout Extensibility pixel to Shopify

Previously, merchants could manually add JavaScript snippets in several places in their online store: in online preferences, in checkout scripts, and in apps. Shopify are moving away from this approach to improve security, so you will now need to manage scripts to track customer events using Shopify's pixel manager instead.

You can create a pixel for Fullstory by following the Add a custom pixel steps provided by Shopify:

1. From your Shopify admin, go to Settings > Customer events.
2. Click the Add custom pixel button.
3. Name the pixel Fullstory Checkout Extension or similar.
4. Click the Add pixel button.

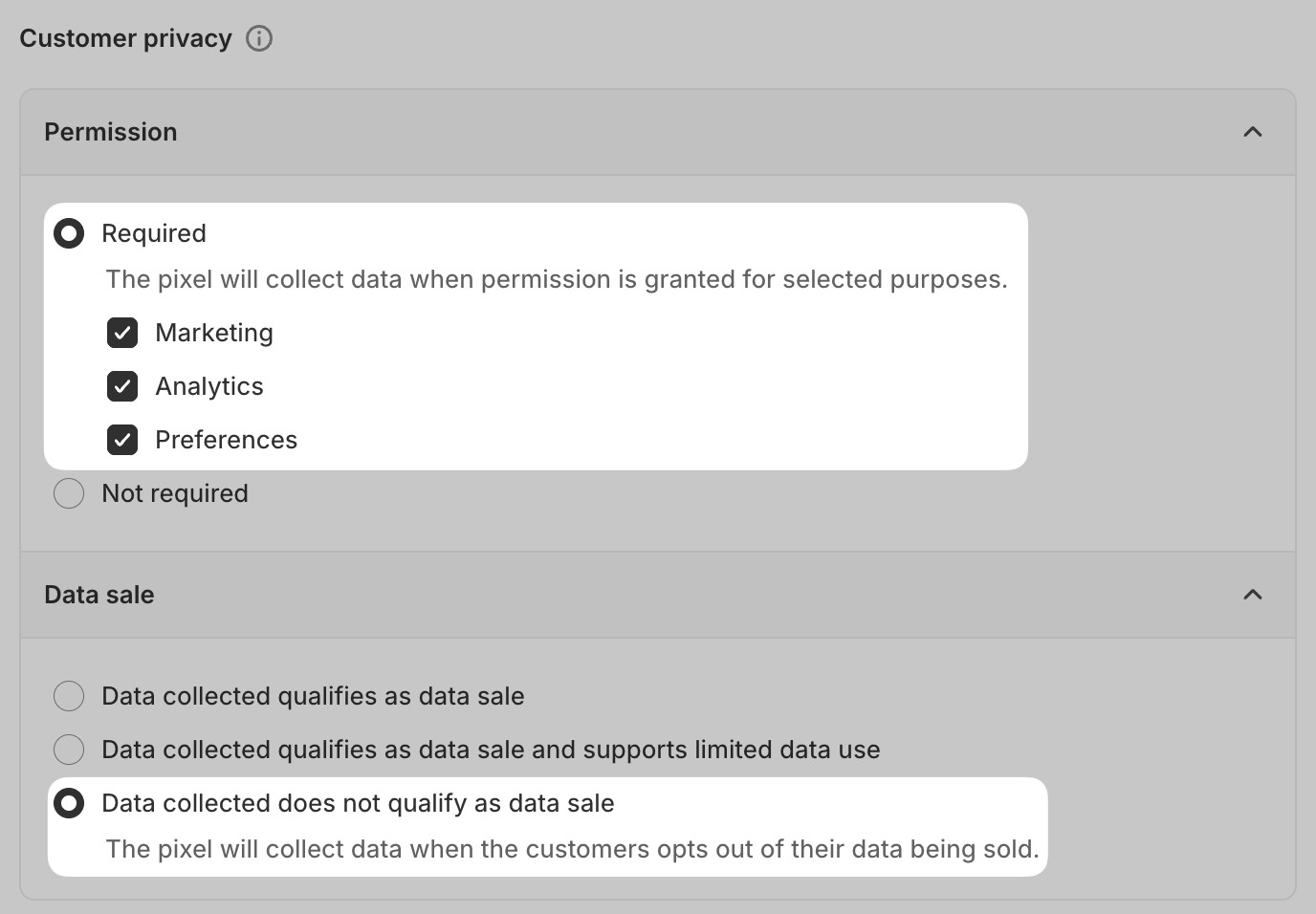

5. Under Customer privacy, select the following:

6. Copy and paste the pixel’s JavaScript code from this article:



   Code to use if Additional Scripts option IS available

   window._fs_org = '<org id>';
    window._fs_identify_customer = false;
    window._fs_use_order_completed = false;
    window._fs_additional_scripts_snippet = true;
    window._fs_host = 'fullstory.com';
    window._fs_namespace = 'FS';
    window._fs_debug = false;
    window._fs_script = !window._fs_debug ? 'edge.fullstory.com/s/fs.js' : 'edge.fullstory.com/s/fs-debug.js';
    function isAdditionalScriptAllowed() {
      return Date.now() < new Date('2025-08-28');
    }
    function isCheckout() {
      return document.location.pathname.indexOf('/checkouts/') !== -1;
    }
    function isThankYou() {
      return document.location.pathname.indexOf('/thank_you') !== -1;
    }
    if (isCheckout() || isThankYou()) {
      if (isCheckout()) {
        window._fs_is_outer_script = true;
      } else {
        if (isAdditionalScriptAllowed() && window._fs_additional_scripts_snippet) {
          window._fs_capture_on_startup = false;
        } else {
          window._fs_is_outer_script = true;
        }
      }
    } else {
      window._fs_run_in_iframe = true;
    }
   !function(m,n,e,t,l,o,g,y){var s,f,a=function(h){
    return!(h in m)||(m.console&&m.console.log&&m.console.log('FullStory namespace conflict. Please set window["_fs_namespace"].'),!1)}(e)
    ;function p(b){var h,d=[];function j(){h&&(d.forEach((function(b){var d;try{d=b[h[0]]&&b[h[0]](h[1])}catch(h){return void(b[3]&&b[3](h))}
    d&&d.then?d.then(b[2],b[3]):b[2]&&b[2](d)})),d.length=0)}function r(b){return function(d){h||(h=[b,d],j())}}return b(r(0),r(1)),{
    then:function(b,h){return p((function(r,i){d.push([b,h,r,i]),j()}))}}}a&&(g=m[e]=function(){var b=function(b,d,j,r){function i(i,c){
    h(b,d,j,i,c,r)}r=r||2;var c,u=/Async$/;return u.test(b)?(b=b.replace(u,""),"function"==typeof Promise?new Promise(i):p(i)):h(b,d,j,c,c,r)}
    ;function h(h,d,j,r,i,c){return b._api?b._api(h,d,j,r,i,c):(b.q&&b.q.push([h,d,j,r,i,c]),null)}return b.q=[],b}(),y=function(b){function h(h){
    "function"==typeof h[4]&&h[4](new Error(b))}var d=g.q;if(d){for(var j=0;j<d.length;j++)h(d[j]);d.length=0,d.push=h}},function(){
    (o=n.createElement(t)).async=!0,o.crossOrigin="anonymous",o.src="https://"+l,o.onerror=function(){y("Error loading "+l)}
    ;var b=n.getElementsByTagName(t)[0];b&&b.parentNode?b.parentNode.insertBefore(o,b):n.head.appendChild(o)}(),function(){function b(){}
    function h(b,h,d){g(b,h,d,1)}function d(b,d,j){h("setProperties",{type:b,properties:d},j)}function j(b,h){d("user",b,h)}function r(b,h,d){j({
    uid:b},d),h&&j(h,d)}g.identify=r,g.setUserVars=j,g.identifyAccount=b,g.clearUserCookie=b,g.setVars=d,g.event=function(b,d,j){h("trackEvent",{
    name:b,properties:d},j)},g.anonymize=function(){r(!1)},g.shutdown=function(){h("shutdown")},g.restart=function(){h("restart")},
    g.log=function(b,d){h("log",{level:b,msg:d})},g.consent=function(b){h("setIdentity",{consent:!arguments.length||b})}}(),s="fetch",
    f="XMLHttpRequest",g._w={},g._w[f]=m[f],g._w[s]=m[s],m[s]&&(m[s]=function(){return g._w[s].apply(this,arguments)}),g._v="2.0.0")
    }(window,document,window._fs_namespace,"script",window._fs_script);


   var customer = init.data.customer;
    if (window._fs_identify_customer && customer && customer.id) {
      window[window._fs_namespace]('setIdentity', {
        uid: customer.id,
        properties: {
          email: customer.email,
          displayName: customer.firstName + ' ' + customer.lastName,
          ordersCount: customer.ordersCount
        }
      });
    }
    function format(obj) {
      var keys = arguments.length > 1 && arguments[1] !== undefined ? arguments[1] : [];
      if (keys && keys.length > 0) {
        for (var key in obj) {
          if (keys.includes(key)) {
            delete obj[key];
          } else if (typeof obj[key] === 'object' && obj[key] !== null) {
            format(obj[key], keys);
          }
        }
      }
      return obj;
    }
    function trackEvent(name) {
      var properties = arguments.length > 1 && arguments[1] !== undefined ? arguments[1] : {};
      if (window._fs_debug) {
        console.log(Date.now() + ' ' + name + ' ' + JSON.stringify(properties));
      }
      window[window._fs_namespace]('trackEvent', {
        name: name,
        properties: properties
      }, 'shopify-pixel-v1');
    }
    if (isCheckout()) {
      analytics.subscribe('clicked', function (event) {
        trackEvent(event.name, format(event.data.element, ['value']));
      });
      analytics.subscribe('input_changed', function (event) {
        trackEvent(event.name, format(event.data.element, ['value']));
      });
    }
    analytics.subscribe('page_viewed', function (event) {
    });
    analytics.subscribe('cart_viewed', function (event) {
      trackEvent(event.name, format(event.data.cart, ['lines']));
    });
    analytics.subscribe('collection_viewed', function (event) {
      trackEvent(event.name, {
        productVariants: event.data.collection.productVariants.length,
        title: event.data.collection.title
      });
    });
    analytics.subscribe('product_viewed', function (event) {
      trackEvent(event.name, format(event.data.productVariant, ['image', 'url']));
    });
    analytics.subscribe('product_added_to_cart', function (event) {
      trackEvent(event.name, format(event.data.cartLine, ['image', 'url']));
    });
    analytics.subscribe('product_removed_from_cart', function (event) {
      trackEvent(event.name, format(event.data.cartLine, ['image', 'url']));
    });
    analytics.subscribe('search_submitted', function (event) {
      trackEvent(event.name, {
        productVariants: event.data.searchResult.productVariants.length,
        query: event.data.searchResult.query
      });
    });
    analytics.subscribe('checkout_started', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_address_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_contact_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_shipping_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('payment_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_completed', function (event) {
      var checkout = event.data.checkout;
      var properties = {
        attributes: checkout.attributes,
        currencyCode: checkout.currencyCode,
        discountApplications: checkout.discountApplications.map(function (d) {
          return d.allocationMethod + ':' + d.targetSelection + ':' + d.targetType + ':' + d.type;
        }),
        discountTitles: checkout.discountApplications.map(function (d) {
          return d.title;
        }),
        lineItems: checkout.lineItems.length,
        orderId: checkout.order.id,
        subtotalPrice: checkout.subtotalPrice,
        totalPrice: checkout.totalPrice,
        totalTax: checkout.totalTax,
        transactionGateways: checkout.transactions.map(function (t) {
          return t.gateway;
        })
      };
      if (window._fs_use_order_completed || !isAdditionalScriptAllowed()) {
        properties.products = checkout.lineItems.map(function (l) {
          return {
            quantity: l.quantity,
            productTitle: l.title,
            price: l.variant?.price?.amount || 'unknown price',
            sku: l.variant?.sku || 'unknown sku',
            variantTitle: l.variant?.title || 'unknown variant title'
          };
        });
        trackEvent('Order Completed', properties);
      } else {
        trackEvent(event.name, properties);
      }
    });





   Code to use if Additional Scripts option IS NOT available

   window._fs_org = '<org id>';
    window._fs_identify_customer = false;
    window._fs_use_order_completed = true;
    window._fs_additional_scripts_snippet = false;
    window._fs_host = 'fullstory.com';
    window._fs_namespace = 'FS';
    window._fs_debug = false;
    window._fs_script = !window._fs_debug ? 'edge.fullstory.com/s/fs.js' : 'edge.fullstory.com/s/fs-debug.js';
    function isAdditionalScriptAllowed() {
      return Date.now() < new Date('2025-08-28');
    }
    function isCheckout() {
      return document.location.pathname.indexOf('/checkouts/') !== -1;
    }
    function isThankYou() {
      return document.location.pathname.indexOf('/thank_you') !== -1;
    }
    if (isCheckout() || isThankYou()) {
      if (isCheckout()) {
        window._fs_is_outer_script = true;
      } else {
        if (isAdditionalScriptAllowed() && window._fs_additional_scripts_snippet) {
          window._fs_capture_on_startup = false;
        } else {
          window._fs_is_outer_script = true;
        }
      }
    } else {
      window._fs_run_in_iframe = true;
    }
   !function(m,n,e,t,l,o,g,y){var s,f,a=function(h){
    return!(h in m)||(m.console&&m.console.log&&m.console.log('FullStory namespace conflict. Please set window["_fs_namespace"].'),!1)}(e)
    ;function p(b){var h,d=[];function j(){h&&(d.forEach((function(b){var d;try{d=b[h[0]]&&b[h[0]](h[1])}catch(h){return void(b[3]&&b[3](h))}
    d&&d.then?d.then(b[2],b[3]):b[2]&&b[2](d)})),d.length=0)}function r(b){return function(d){h||(h=[b,d],j())}}return b(r(0),r(1)),{
    then:function(b,h){return p((function(r,i){d.push([b,h,r,i]),j()}))}}}a&&(g=m[e]=function(){var b=function(b,d,j,r){function i(i,c){
    h(b,d,j,i,c,r)}r=r||2;var c,u=/Async$/;return u.test(b)?(b=b.replace(u,""),"function"==typeof Promise?new Promise(i):p(i)):h(b,d,j,c,c,r)}
    ;function h(h,d,j,r,i,c){return b._api?b._api(h,d,j,r,i,c):(b.q&&b.q.push([h,d,j,r,i,c]),null)}return b.q=[],b}(),y=function(b){function h(h){
    "function"==typeof h[4]&&h[4](new Error(b))}var d=g.q;if(d){for(var j=0;j<d.length;j++)h(d[j]);d.length=0,d.push=h}},function(){
    (o=n.createElement(t)).async=!0,o.crossOrigin="anonymous",o.src="https://"+l,o.onerror=function(){y("Error loading "+l)}
    ;var b=n.getElementsByTagName(t)[0];b&&b.parentNode?b.parentNode.insertBefore(o,b):n.head.appendChild(o)}(),function(){function b(){}
    function h(b,h,d){g(b,h,d,1)}function d(b,d,j){h("setProperties",{type:b,properties:d},j)}function j(b,h){d("user",b,h)}function r(b,h,d){j({
    uid:b},d),h&&j(h,d)}g.identify=r,g.setUserVars=j,g.identifyAccount=b,g.clearUserCookie=b,g.setVars=d,g.event=function(b,d,j){h("trackEvent",{
    name:b,properties:d},j)},g.anonymize=function(){r(!1)},g.shutdown=function(){h("shutdown")},g.restart=function(){h("restart")},
    g.log=function(b,d){h("log",{level:b,msg:d})},g.consent=function(b){h("setIdentity",{consent:!arguments.length||b})}}(),s="fetch",
    f="XMLHttpRequest",g._w={},g._w[f]=m[f],g._w[s]=m[s],m[s]&&(m[s]=function(){return g._w[s].apply(this,arguments)}),g._v="2.0.0")
    }(window,document,window._fs_namespace,"script",window._fs_script);


   var customer = init.data.customer;
    if (window._fs_identify_customer && customer && customer.id) {
      window[window._fs_namespace]('setIdentity', {
        uid: customer.id,
        properties: {
          email: customer.email,
          displayName: customer.firstName + ' ' + customer.lastName,
          ordersCount: customer.ordersCount
        }
      });
    }
    function format(obj) {
      var keys = arguments.length > 1 && arguments[1] !== undefined ? arguments[1] : [];
      if (keys && keys.length > 0) {
        for (var key in obj) {
          if (keys.includes(key)) {
            delete obj[key];
          } else if (typeof obj[key] === 'object' && obj[key] !== null) {
            format(obj[key], keys);
          }
        }
      }
      return obj;
    }
    function trackEvent(name) {
      var properties = arguments.length > 1 && arguments[1] !== undefined ? arguments[1] : {};
      if (window._fs_debug) {
        console.log(Date.now() + ' ' + name + ' ' + JSON.stringify(properties));
      }
      window[window._fs_namespace]('trackEvent', {
        name: name,
        properties: properties
      }, 'shopify-pixel-v1');
    }
    if (isCheckout()) {
      analytics.subscribe('clicked', function (event) {
        trackEvent(event.name, format(event.data.element, ['value']));
      });
      analytics.subscribe('input_changed', function (event) {
        trackEvent(event.name, format(event.data.element, ['value']));
      });
    }
    analytics.subscribe('page_viewed', function (event) {
    });
    analytics.subscribe('cart_viewed', function (event) {
      trackEvent(event.name, format(event.data.cart, ['lines']));
    });
    analytics.subscribe('collection_viewed', function (event) {
      trackEvent(event.name, {
        productVariants: event.data.collection.productVariants.length,
        title: event.data.collection.title
      });
    });
    analytics.subscribe('product_viewed', function (event) {
      trackEvent(event.name, format(event.data.productVariant, ['image', 'url']));
    });
    analytics.subscribe('product_added_to_cart', function (event) {
      trackEvent(event.name, format(event.data.cartLine, ['image', 'url']));
    });
    analytics.subscribe('product_removed_from_cart', function (event) {
      trackEvent(event.name, format(event.data.cartLine, ['image', 'url']));
    });
    analytics.subscribe('search_submitted', function (event) {
      trackEvent(event.name, {
        productVariants: event.data.searchResult.productVariants.length,
        query: event.data.searchResult.query
      });
    });
    analytics.subscribe('checkout_started', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_address_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_contact_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_shipping_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('payment_info_submitted', function (event) {
      trackEvent(event.name);
    });
    analytics.subscribe('checkout_completed', function (event) {
      var checkout = event.data.checkout;
      var properties = {
        attributes: checkout.attributes,
        currencyCode: checkout.currencyCode,
        discountApplications: checkout.discountApplications.map(function (d) {
          return d.allocationMethod + ':' + d.targetSelection + ':' + d.targetType + ':' + d.type;
        }),
        discountTitles: checkout.discountApplications.map(function (d) {
          return d.title;
        }),
        lineItems: checkout.lineItems.length,
        orderId: checkout.order.id,
        subtotalPrice: checkout.subtotalPrice,
        totalPrice: checkout.totalPrice,
        totalTax: checkout.totalTax,
        transactionGateways: checkout.transactions.map(function (t) {
          return t.gateway;
        })
      };
      if (window._fs_use_order_completed || !isAdditionalScriptAllowed()) {
        properties.products = checkout.lineItems.map(function (l) {
          return {
            quantity: l.quantity,
            productTitle: l.title,
            price: l.variant?.price?.amount || 'unknown price',
            sku: l.variant?.sku || 'unknown sku',
            variantTitle: l.variant?.title || 'unknown variant title'
          };
        });
        trackEvent('Order Completed', properties);
      } else {
        trackEvent(event.name, properties);
      }
    });

7. Replace the text <org id> in the pixel’s code with your Org Id. To locate your Org Id, see the article How do I find my Fullstory Org Id. The resulting line will typically appear in this format: window._fs_org = 'o-0rGId-na1'; or window._fs_org = 'o-0rGId-eu1'; but may look a bit different for older accounts.
8. Click the Save button.
9. Activate the pixel by clicking the Connect button.

   It’s recommended that most customers use the pixel’s default configuration. For more advanced configuration and customization, please contact support@fullstory.com to inquire about Fullstory Professional Services.

Step 4 - Check 'Capture data by domain' settings

Go to Settings > Data Capture and Privacy > Data Capture and make sure 'All Other domains' is toggled ON:


This setting is required to allow the web pixel to work, as Fullstory’s capture data by domain feature is unable to identify the pixel’s iframe origin and determine if the domain is allowed.  As a result, all domains must be allowed.

Step 5 - Configure a Revenue Event (*Optional)

As the pixel provides a conversion event, admin users on Advanced / Enterprise plans with access to Conversions will be able to configure a revenue event as described here.

Choose the "Order Completed” event and select either total_price_real or totalPrice_real as the revenue property.

Step 6 - Update Page Definitions (*Optional)

If you have page rules created in your account looking for visits to a /checkout page, the URL path may look a little different once the pixel is in place because the data comes to Fullstory via the pixel instead of directly from your site.

Once a session comes through create a metric looking for visits to your Checkout page:


You can then group the results by URL Path / Page to see how these results show, you will typically see a URL which includes references to wpm@ / sandbox / web-pixel, which wouldn't be the same URL seen by the end-user.

You can create new rules or edit any existing rules by going to Settings > Data Management > Pages. Wildcards can be used in the URL path but if you would like more guidance you can reach out to support.

Events captured by Fullstory after creating a pixel

Fullstory custom events will now appear throughout session replays shortly after activating the pixel. More specifically, the following custom events have been instrumented:

Any theme page where the Fullstory snippet has been added:

• cart_viewed
• collection_viewed
• product_viewed
• product_added_to_cart
• product_removed_from_cart
• search_submitted

Payments page:

• checkout_started
• checkout_address_info_submitted
• checkout_contact_info_submitted
• checkout_shipping_info_submitted
• payment_info_submitted
• clicked (the value property will be removed to protect user privacy)
• input_changed (the value property will be removed to protect user privacy)

Thank you page (after August 28, 2025):

• checkout_completed renamed to “Order Completed”

Note: some events may have data incompatible with Fullstory and may be omitted.  Additionally, the pixel specifically omits the value property of Shopify DOM events as it could include sensitive or personal information.

Looking for Shopify Events in Fullstory

As a best practice (for both pixel and historical integration), segments and metrics using custom events on the thank you page should add the Entry Page is false criteria.  When users become inactive on the thank you page and later active, Shopify may generate analytics events again.  The Entry Page is false criteria excludes sessions and events that are the result of the user resuming activity on the thank you page after their previous session has ended.

Known issues with the Fullstory Checkout Extensibility pixel

Due to technical limitations of the pixel sandbox provided by Shopify, the following issues are known to occur:

• The Checkout (Information, Shipping, and Payment) pages will appear blank in session replay, but analytics events will still be captured. Fullstory session replays will show website content on all pages leading up to the Checkout page. Since the Checkout pages’ content is inaccessible to third parties, you will see a period of only custom events and blank pages in session replay. Of note, custom events accurately reflect the time and user activity of the Checkout pages.
• If the thank you page has the Fullstory snippet added (prior to August 28, 2025), replay will resume showing website content once the user has been redirected to the thank you page. After August 28, 2025, the thank you page will similarly appear blank (with analytics events still captured).
• Page variables are not supported.  Because the pixel is contained in an iframe, using FS(‘setProperties’) is not supported.
• Web pixels only run when visitors have provided the permissions required in the pixel configuration, you can read more about this requirement here - Customer privacy. By default new pixels created will be set to require Marketing and Analytics permissions e.g via a cookie banner - Manage customer privacy settings.

Timeline of changes made by Shopify

Note: Shopify now recommends merchants and third parties upgrade to Checkout Extensibility which is more secure and better performing than the old method of updating scripts within the checkout.liquid file, which is now deprecated.

Doing so affects previous Fullstory integration with the following notable changes per Shopify:

• On August 13, 2024, checkout.liquid for the information, shipping, and payment pages was turned off and is no longer supported.
  • The checkout object is deprecated for the Information, Shipping, and Payment pages as of August 13, 2024.
• From January 6, 2025, Shopify will begin auto-upgrading checkouts still using checkout.liquid customizations.
• On August 28, 2025, checkout.liquid for the thank you and order status pages will be turned off and no longer supported. This also includes turning off apps using script tags and additional scripts under the post-purchase and order status pages. Shopify Scripts will continue to work alongside checkout extensibility until this date.

FAQs

Why does session replay show blank for the Checkout pages?
With the introduction of Checkout Extensibility, the content of Checkout pages’ is no longer accessible to third parties so Fullstory are not able to recreate end-users actions in session replay for these pages.

Is it possible to determine if users see specific elements on the Checkout pages?
No, at this time element visibility in the viewport is not exposed by Shopify, so you will not be able to track watched elements.

How can we determine if users apply discount codes or gift cards during checkout?
Depending on your configuration either the checkout_completed or “Order Completed” event will have discount code related information. The discountTitles_strs property contains discount code(s) or title(s) of discount(s) as found in Shopify administration. Additionally, the discountApplications_strs property will contain the allocationMethod, targetSelection, targetType, and type values provided by the checkout_completed event. Refer to the Shopify web pixels API for specifics on these properties.

Will Fullstory capture rage clicks, dead clicks, and error clicks on the Checkout pages?
No. these signals are not available on pages such as payment where capture is intentionally limited by Shopify.

Is it possible to determine when customers modify information within fields?
Yes, certain events provided by Shopify (e.g. checkout_contact_info_submitted), will include information provided by the customer. Additionally, input_changed events will indicate where customers enter information into a field; however, the pixel prevents capture of the value entered to limit the possibility of capturing personal or sensitive information. Pixel customization is required to adjust the code in order to capture these values. The format function in the pixel accepts a list of properties that should be removed. Alter the code format(event.data.element, ['value'])) to be format(event.data.element, []) instead.

Will data layer events appear as duplicates in Fullstory after the addition of the pixel?
If instrumented events using Fullstory APIs have names exactly matching those provided by Shopify, this situation is possible. Fullstory’s Enhanced E-commerce integration, however, has similar but different naming (add_product versus Shopify’s product_added_to_cart) and will not duplicate events. If duplicate events do exist, you can either edit the pixel’s code to remove the analytics.subscribe call for the offending event or archive an existing event to prevent it from being used by Fullstory end users. See the Sending custom event data into Fullstory article for details on archiving events.

Can I capture Network errors during Checkout?
Network errors are not included in the standard events that Shopify make available to Fullstory via the pixel. As an alternative, customers could consider implementing server-side events.

Can Shopify Checkout pages be used in Fullstory Heatmaps?
With the introduction of Checkout Extensibility, the content of Checkout pages (Information, Shipping, and Payment) is no longer accessible to third parties, meaning Fullstory cannot recreate session replay for these pages. Since we cannot capture these pages, in turn this means such pages will not work in Heatmaps.

Why does Shopify report higher sales than Fullstory?
The pixel method has some limitations with the data available to share with Fullstory, so discrepancies >15% may be expected is comparing data between these tools.
